White Ind. Square Taper Bottom Bracket BSA English Threaded

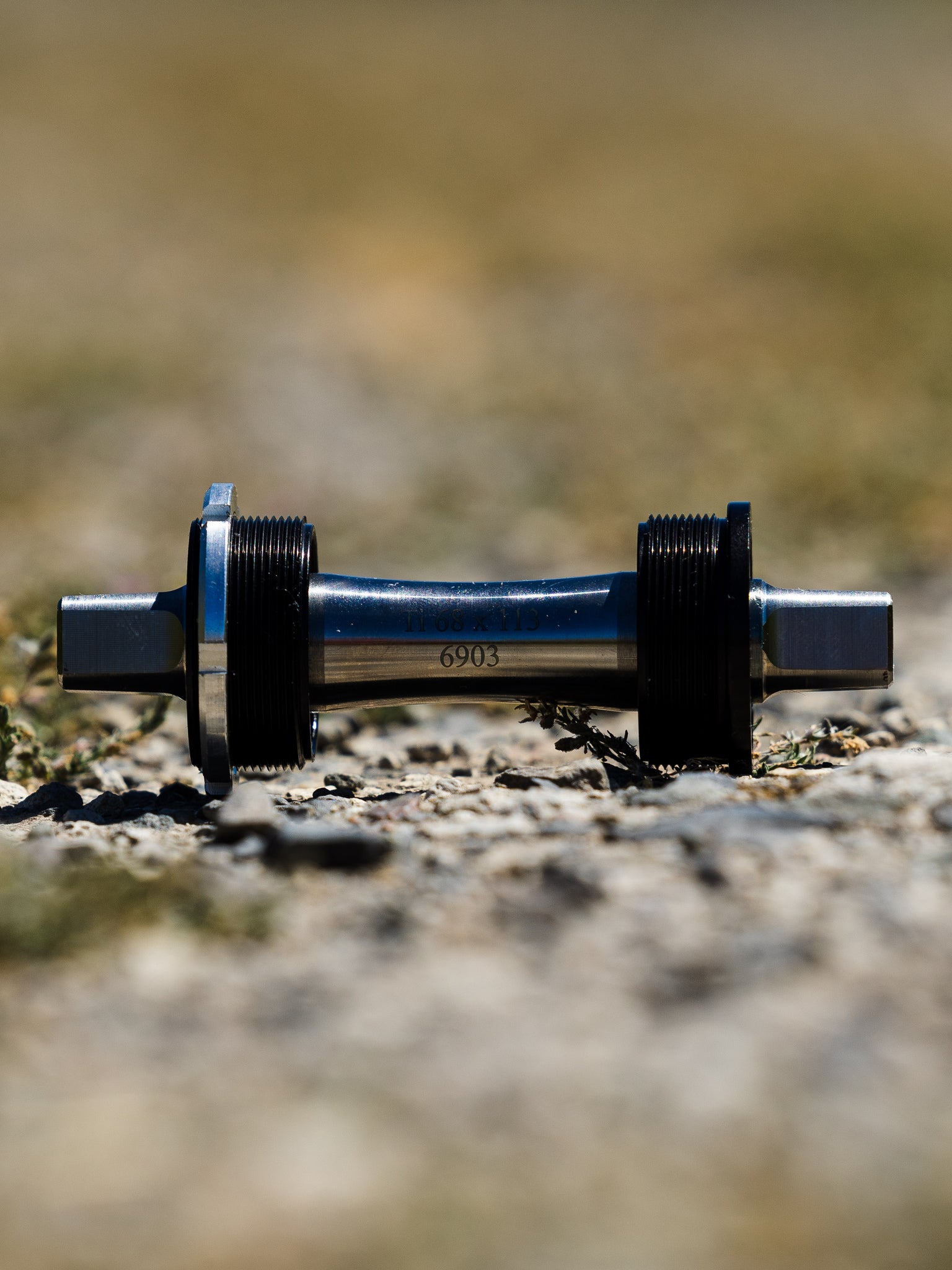

This is one of the first products White Industries ever produced and remains a popular item all these years later!  This is a BSA “square taper” style bottom bracket which uses BSA threads and a spindle that uses a square/tapered crank arm interface. It is compatible with White Industries square taper ENO and VBC cranks as well as other brands that use a J.I.S. (Japanese Industrial Standard) taper such as Shimano, Sugino, and others. It is not compatible with Campy cranks!

• 1.37” x 24 TPI threads

• Compatible with 68mm or 73mm bottom bracket shells (spindles are specific to shell width)

• Options include:

• 108mm, 113mm, or 121mm spindle lengths

• Stainless or Titanium spindle

• Cup tool

• Park BBT-22 or BBT-32

• Shimano TL-UN52 or TL-UN74-S

• Lockring tool

• 6-notch 44mm inner diameter/41mm tooth diameter or a hook spanner

• Note! Titanium spindles flex more than stainless steel spindles and may require shorter service intervals to prevent creaking, especially for riders over 180lbs
