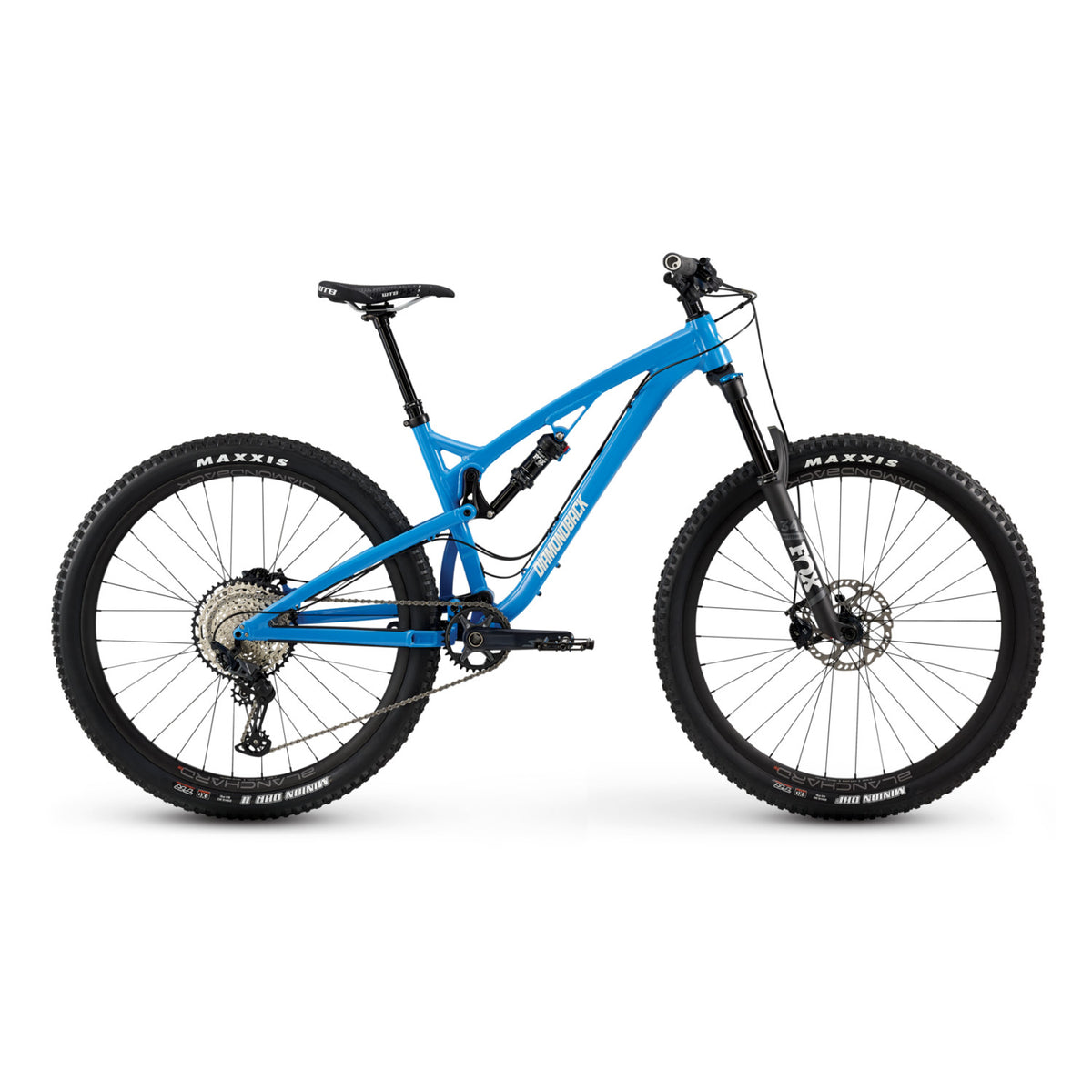

The Release 29 2 is the lankier sibling of the Release and Catch full-suspension mountain bikes. Designed for high-mileage days with a high shred factor, this aluminum trail ripper is built on the same 130mm travel Level Link suspension platform as its smaller-wheeled siblings. We’ve adjusted the geometry for 29-inch wheels while keeping the same playful attitude that our Level Link bikes have become known for. The Fox Float DPS Performance shock is outfitted with an EVOL LV air sleeve for excellent responsiveness and a bottomless feel to soak up the worst on steep, technical terrain. A 140mm travel Fox Rhythm 34 fork, Shimano SLX drivetrain, and hydraulic stoppers let you stay focused, no matter what the trail dishes out.
-
FRAME Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
-
REAR SHOCK Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width
-
FORK Fox Rhythm 34 29", 140mm Travel, Grip Dampener w/Sweep Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle
-
HEADSET FSA No. 57 Sealed Cartridge
-
CRANKS Shimano SLX M7100, 32T
-
BOTTOM BRACKET Shimano BB-52
-
REAR DERAILLEUR Shimano SLX M7100 Shadow Plus, 12 Speed, SGS
-
SHIFTER Shimano SLX M7100, 12 Speed
-
COGSET Shimano SLX M7100 Cassette, 12 Speed, 10-51T
-
CHAIN Shimano SLX M7100, 12 Speed
-
FRONT HUB Shimano SLX M7110, 32h Aluminum Boost 110x15mm Thru-axle, Center Lock
-
REAR HUB Shimano SLX M7110, 32h Aluminum Boost 148x12mm Thru-axle, Center Lock, Microspline
-
SPOKES14g Stainless Steel
-
RIMS Diamondback Blanchard 28R, Tubeless Comaptible, 32h
-
TIRES Maxxis Minion DHF 29x2.3" EXO, TLR, Folding / Maxxis Minion DHR II 29x2.3" EXO, TLR, Folding
-
BRAKE LEVERS Shimano SLX
-
PEDALS DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins
-
HANDLEBAR DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
-
GRIPS Ergon GE10 Evo Lock-On
-
STEM DB35 Aluminum 35mm Reach, 35mm Bar Bore
-
SEAT WTB Koda Comp
-
SEATPOST Kindshock Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote
-
EXTRAS Tool Kit, DB Shock Pump, Tubeless Valves, DB Mud Guard, Spare RD Hanger, Carbon Paste
-
BRAKES Shimano SLX M7100, w/180mm Front /180mm Rear, RT70 Rotors
| FRAME SIZE |
SM/15.5 5'4"-5'7" |
MD/17 5'7"-5'10" |
LG/19 5'10"-6'2" |
XL/21 6'2"-6'6" |
| Rider Height |
- |
- |
- |
- |
| Bike Stand Over Height |
775.0 mm |
784.0 mm |
791.0 mm |
804.0 mm |
| Bike Seat Tube Length |
394.0 mm |
432.0 mm |
483.0 mm |
533.0 mm |
| Bike Top Tube Length |
585.0 mm |
610.0 mm |
635.0 mm |
660.0 mm |
| Bike Head Tube Length |
100.0 mm |
100.0 mm |
110.0 mm |
120.0 mm |
| Bike Head Angle |
67.7 ° |
67.7 ° |
67.7 ° |
67.7 ° |
| Bike Seat Angle |
73.0 ° |
73.0 ° |
73.0 ° |
73.0 ° |
| Bike Wheel Base |
1134.0 mm |
1159.0 mm |
1185.0 mm |
1211.0 mm |
| Bike Chain Stay Length |
446.0 mm |
446.0 mm |
446.0 mm |
446.0 mm |
| Bike Bb Height |
348.0 mm |
348.0 mm |
348.0 mm |
348.0 mm |
| Bike Bb Drop |
25.0 mm |
25.0 mm |
25.0 mm |
25.0 mm |
| Bike Stem Length |
40.0 mm |
40.0 mm |
40.0 mm |
40.0 mm |
| Bike Handlebar Width |
780.0 mm |
780.0 mm |
780.0 mm |
780.0 mm |
| Bike Crank Length |
170.0 mm |
175.0 mm |
175.0 mm |
175.0 mm |
| Bike Seat Post Length |
435.0 mm |
435.0 mm |
485.0 mm |
485.0 mm |
| Bike Stack |
599.0 mm |
599.0 mm |
608.0 mm |
617.0 mm |
| Bike Reach |
402.0 mm |
427.0 mm |
449.0 mm |
472.0 mm |
| Bike Fork Travel |
140.0 mm |
140.0 mm |
140.0 mm |
140.0 mm |
